Mobiele EV-Lader

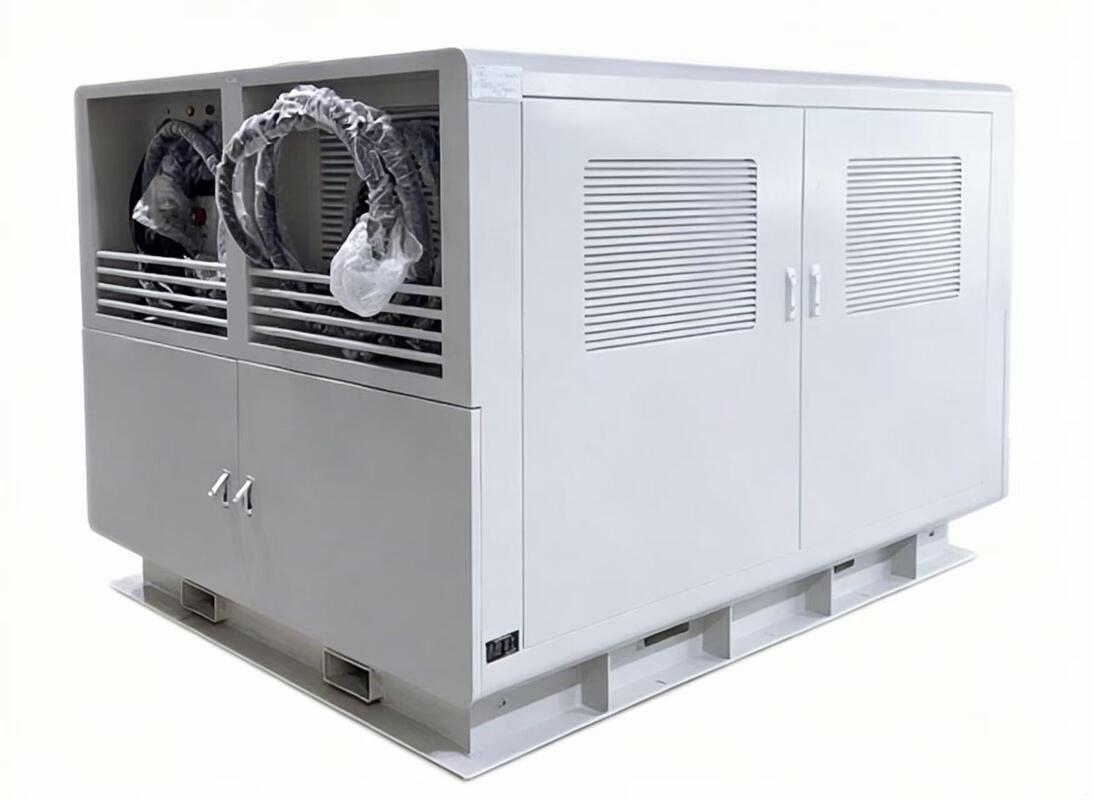

400kWH Mobile Energy Storage EV Charging Station FlexCharge Mobile ESS Charging Hub

Alle Categorieën

De draagbare Lader van gelijkstroom EV

Ev-laadmodule

Neem contact met ons op

Ms. Vivian

+8618638351180

Contact opnemen

400kWH Mobile Energy Storage EV Charging Station FlexCharge Mobile ESS Charging Hub

Merknaam:	Mckee Charging Cube
Modelnummer:	CLF-DC-400kWH
MOQ:	1
Prijs:	Negotiate
Verpakking:	Houten kistverpakking
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Luoyang, China

Certificering:

Nominaal vermogen:

120 kW

Capaciteit:

400KWH

Weergavescherm:

7-inch touchscreen

Uitgangsspanningsbereik:

DC200V-750V (0-100A)

Ladend Kanon:

GBT/CcS1/CCS2 optioneel (7m kabellengte)

Productgrootte:

1300*710*980mm

gewicht:

Ongeveer 690 kg

Beschermingsniveau:

IP55

Markeren:

400kWH mobile EV charging station

FlexCharge mobile ESS hub

portable energy storage EV charger

Productbeschrijving

400kWH Mobile Energy Storage EV Charging Station FlexCharge Mobile ESS Charging Hub

The Maxpower IP54 CCS2 DC 120kW EV Charger Portable Charging Station provides emergency charging solutions for electric vehicles, offering reliable short-term power for new energy vehicles. This versatile system supports both AC and DC charging with standard 400 kWh capacity and 120 kW output power, with options for custom larger configurations.

Technical Specifications

Electric Current	250A / 600A
Input Voltage	327V - 456Vac
Power	Complete machine (0-2400A), Single circuit (0-25A), Super-charging (0-600A)
Output Voltage	50V - 1000V
Waterproof Level	IP54
Input Frequency	45Hz - 65Hz
Work Temperature	-30°C to 85°C (Derated output when temperature exceeds 50°C)
Power Factor	≥ 0.99
Operating Humidity	5% - 95% (No frost condensation)
Peak Efficiency	≥ 95.5%
Elevation	≤ 2000M
Safety Functions	Short circuit protection, Leakage protection, Overcurrent protection, Emergency Stop
Material Quality	PC Flame retardant
Usage Methods	RFID card / Swipe card / GPRS / RS485 / CAN / Ethernet
Line Length	5M / 10M
Network Connection	OCPP 1.6 protocol
Main Unit Dimensions	1355 * 995 * 2000 mm (L * W * H)
Terminal Dimensions	325 * 450 * 1430 mm (L * W * H)
Packaging	Wooden Case

Key Features

Dual charging capability with both AC and DC support
IP54 rated for dust and water resistance
Wide operating temperature range from -30°C to 85°C
Multiple authentication methods including RFID and swipe cards
Advanced network connectivity with OCPP 1.6 protocol support
Comprehensive safety protection systems
High efficiency with ≥95.5% peak performance
Flexible power configurations for various applications

Flexible Shared Charging Stack

Available in 250A/600A configurations with power options ranging from 480-600-720-800-960kW to meet diverse charging requirements.

Frequently Asked Questions

How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days. For DC charging posts, the prototype time is usually 15 days. For high power fast charging stations, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

How to guarantee the service?

Our products are divided into two categories: household and commercial. For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial. For commercial chargers, we provide both standardized services and payment software docking services for operating companies.

How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.
