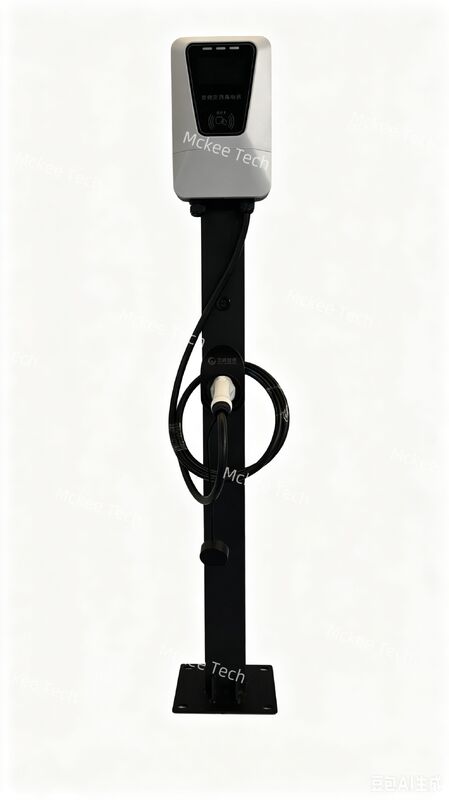

7kW Wall‑Mounted / Floor‑Standing AC Charging Station for EVs

Alle Categorieën

De draagbare Lader van gelijkstroom EV

Ev-laadmodule

Neem contact met ons op

Ms. Vivian

+8618638351180

Contact opnemen

7kW Wall‑Mounted / Floor‑Standing AC Charging Station for EVs

Merknaam:	Mckee Charging Cube
Modelnummer:	CLF-AC-7
MOQ:	1
Prijs:	Negotiate
Verpakking:	Houten kistverpakking
Betalingsvoorwaarden:	D/A, D/P, T/T, Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Luoyang, China

Certificering:

Afmetingen:

Wandmontage: 320*210*100 mm Vloerstaand: 1400*320*180 mm

Nominaal vermogen:

7 kW

Ingangsspanning:

220V

Maximale uitgangsstroom:

32A

Kabel lengte:

IP-classificatie:

IP55

Bedrijfstemperatuur:

-25 ℃ ~ +55 ℃

Kleur:

Aanpasbaar

Markeren:

7kW AC EV charging station

wall-mounted EV charger

floor-standing electric vehicle charger

Productbeschrijving

1. Overview

Our CLF‑AC‑7 7kW national standard AC EV charger is a commercial‑grade intelligent charging equipment specially tailored for operation‑based charging scenarios. Designed with strict compliance with global mainstream EV charging standards, this charging pile supports both wall‑mounted and floor‑standing installation methods, fully meeting the layout requirements of residential communities, commercial parking lots, office parks, public service areas and shared charging stations. As an operations‑edition product, it focuses on unattended commercial operation needs, integrating diversified charging activation and payment functions to help property operators, charging station investors and enterprise managers reduce manual management costs and improve overall operational efficiency.

2. High‑Efficiency Stable Charging Performance

Boasting a rated power of 7kW, an input voltage of 220V and a maximum output current of 32A, this AC charger provides efficient and stable charging service for most mainstream pure‑electric passenger vehicles and plug‑in hybrid electric vehicles on the market. It is equipped with a 4.3‑inch high‑brightness color touch screen, which can clearly display real‑time charging data including charging power, current, voltage, remaining charging time and accumulated power consumption, allowing users to check working status at a glance. The standard 5‑meter long high‑flexibility charging cable expands the effective charging range, adapting to different vehicle parking positions and greatly improving charging convenience for users.

Item	Specification
Model No.	CLF‑AC‑7
Dimensions	Wall‑mounted: 320210100mm Floor‑standing: 1400320180mm
Display Screen	4.3‑inch High‑Brightness Color Touch Screen
Rated Power	7kW
Input Voltage	220V
Max Output Current	32A
Cable Length	5m
IP Rating	IP55
Operating Temperature	-25℃ ~ +55℃
Protection Functions	Lightning protection, Over‑temperature, Over‑current, Leakage protection, Over‑voltage & Under‑voltage protection

3. Multi‑Mode Intelligent Charging & Unattended Operation

To adapt to diversified commercial operation modes, our 7kW AC charging pile supports three core charging activation ways: card swiping, QR code scanning and plug‑and‑charge. Users can start and stop charging by swiping authorized IC cards, scanning mobile payment QR codes or directly using the plug‑and‑charge function, realizing self‑service charging without human intervention.

4. Excellent Outdoor Environmental Adaptability

Constructed with high‑strength industrial‑grade shell materials, the charger reaches an IP55 dust‑proof and waterproof protection level, effectively blocking rainwater, dust, sand and other external impurities from entering the internal circuit components. It has a wide operating temperature range from -25℃ to +55℃, capable of stable operation in extreme weather such as severe cold, high temperature, strong wind and heavy rain, adapting to various complex outdoor working environments.

5. Flexible Installation & Wide Application Scenarios

Two standardized installation styles are provided for flexible site layout: the wall‑mounted type with dimensions of 320*210*100mm is compact and space‑saving, suitable for wall installation of community garages and underground parking lots; the floor‑standing type with dimensions of 1400*320*180mm is independent and easy to deploy, ideal for open‑air parking areas and large‑scale public charging stations. This 7kW AC charging pile is widely applied in residential communities, commercial plazas, corporate office areas, scenic spots, logistics parks and other scenarios, serving as a cost‑effective charging solution for global commercial EV charging projects and bulk wholesale cooperation.

Mckee 7kW National Standard AC EV Charger with full official certifications — fully compliant, safe, durable, ideal for commercial and home use with trustworthy quality.
